220V Edible Coconut Oil Bottling Production Line 1500BPH

Brand Name : METICA

Model Number : MTGF-1000

Certification : CE

Place of Origin : Shanghai

MOQ : 1 SET

Payment Terms : L/C, T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : 25-30 days

Packaging Details : Fumigation-free wooden boxes that meet international standards

Name : Edible oil/coconut oil filling machine

Application : For food and beverage

Capacity : 700-1500 BPH(customizable)

Filling volume accuracy : >99%

Length of the line : 7000mm

Warranty : 1 year

Workflow : filling-capping-labeling-collecting

Voltage : 220V/50HZ

Type : Filling Machine, bottling line

Bottle type : Plastic Bottle And Glass Bottle,PET Plastic Bottle / glass bottle,round bottle

Automatic grade : Automatic

Packaging type : Bottles,cans, buckets

Contact Now

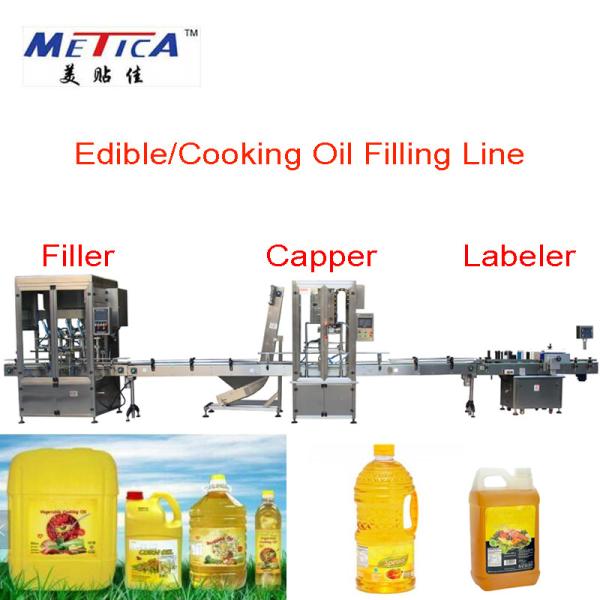

Edible Oil/Coconut Oil Bottling Line And Filling Capping Machine Line

Application :

  • Mainly used to fill edible oil in plastic or glass bottle, widely used in food, chemical, beverages, and similar products.
  • Full filling line is automatic

Description:

  • 1) Easy to adjust and no bottle no filling. Accurate filling quantity and has counting function.
  • 2) Adopts volume type plunger pump filling with filling suffocate preventing from dropping and brushed , no bottle no filling , no drop no spill.
  • 3) Automatic filling, capping and labeling. Easy operation.
  • 4) PLC, control by touch screen

Work process:

  • 1) Put bottles on turn table feeding bottles to filling machine automatically
  • 2) Bottles conveyed to filling machine to fill automatically
  • 3) Bottle conveyed to capping machine cap automatically after filling
  • 4) Bottle conveyed to labeling machine label automatically
  • 5) Collect bottles with a turn table(optional)

the Whole Line technical parameter

Speed 700-1500BPH
Filling accuracy >99%
Filling volume 100-1000ml, 300-3000ml, 500-5000ml (can be customized)
Filling method piston+servo motor driven
Power 220V 50/60Hz, 6kw
Air supply 0.6 MPa
Bottles applicable A wide shape range
Application Liquid or viscosity products
Feature PLC, touch screen, tank, level meter

220V Edible Coconut Oil Bottling Production Line 1500BPH

Filling machine:

220V Edible Coconut Oil Bottling Production Line 1500BPH

Capping machine:

220V Edible Coconut Oil Bottling Production Line 1500BPH

Labeling machine:

220V Edible Coconut Oil Bottling Production Line 1500BPH

Samples display:

220V Edible Coconut Oil Bottling Production Line 1500BPH

Service flow:

220V Edible Coconut Oil Bottling Production Line 1500BPH

Pre-sale Service:

220V Edible Coconut Oil Bottling Production Line 1500BPH

220V Edible Coconut Oil Bottling Production Line 1500BPH

Packing&Shipping:

220V Edible Coconut Oil Bottling Production Line 1500BPH

After-sale service:

220V Edible Coconut Oil Bottling Production Line 1500BPH

Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard. In addition, we have obtained CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe and North America, Southeast Asia, the Middle East, Africa and South America. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Warmly welcome friends all over the world to contact for cooperation, we do believe we will be good business partners. We provide strong support with machines, solutions, information.
