5L Edible Oil Filling Capping And Labeling Machine

Brand Name : METICA

Model Number : MTFC-1000

Certification : CE

Place of Origin : Shanghai

MOQ : 1 SET

Price : USD 10000-30000/SET

Payment Terms : L/C, T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : 25-30 days

Packaging Details : Fumigation-free wooden boxes that meet international standards

Name : 5L Edible oil filling machine

Capacity : 500-1500 BPH(customizable)

Filling volume accuracy : more than 99%

Length of the line : 6000mm

Warranty : one-year

Workflow : Auto Feeding-filling-capping-labeling-collecting

Voltage : 220V, 50/60HZ

Type : bottling machine line

Bottle type : Plastic Bottle And Glass Bottle,PET Plastic Bottle / glass bottle

Automatic grade : Automatic bottling

Packaging type : Bottles,cans,jars

Contact Now

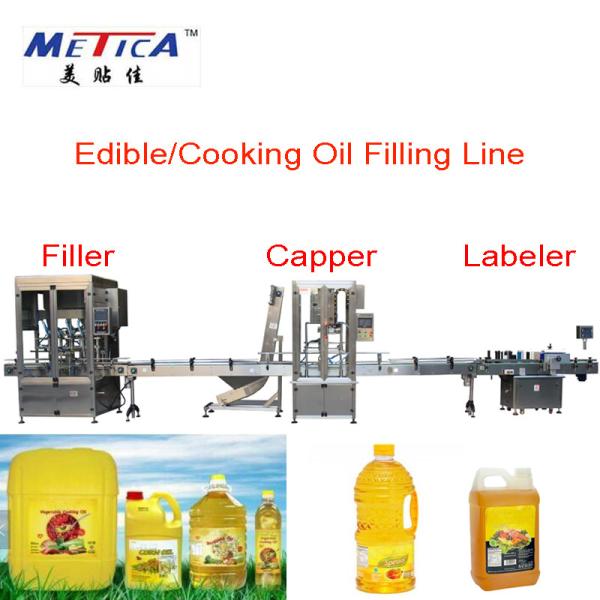

5L Edible Oil Filling Capping And Labeling Machine Edible Oil Bottling Production Line

Application :

  • Mainly used to fill edible oil in plastic or glass bottle, widely used in food, chemical, beverages, and similar products.
  • Full filling line is automatic, good for filling 500ml-5000ml bottle.

Description:

  • Easy to adjust and no bottle no filling. Accurate filling quantity and has counting function.
  • Automatic filling, capping and labeling. Easy operation.
  • PLC, control by touch screen
  • Adopts piston + servo motor driven fillin system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable

Work process:

  • 1)Put bottles on turn table feeding bottles to filling machine automatically
  • 2)Bottles conveyed to filling machine to fill automatically
  • 3)Bottle conveyed to capping machine cap automatically after filling
  • 4)Bottle conveyed to labeling machine label automatically
  • 5)Collect bottles with a turn table(optional)

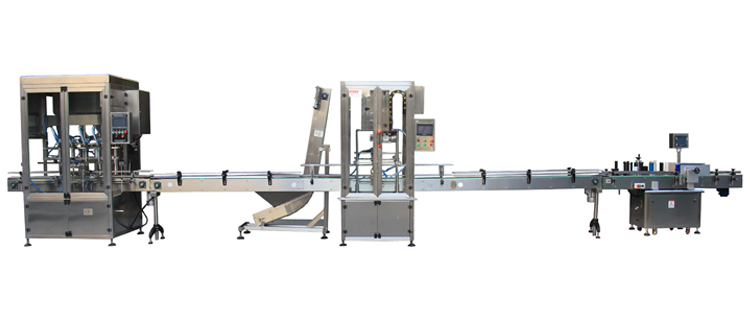

the Whole Line technical parameter

Speed 700-1500BPH
Filling accuracy >99%
Filling volume 100-1000ml, 300-3000ml, 500-5000ml (can be customized)
Filling method piston+servo motor driven
Power 220V 50/60Hz, 6kw
Air supply 0.6 MPa
Bottles applicable A wide shape range
Application Liquid or viscosity products
Feature PLC, touch screen, tank, level meter

5L Edible Oil Filling Capping And Labeling Machine

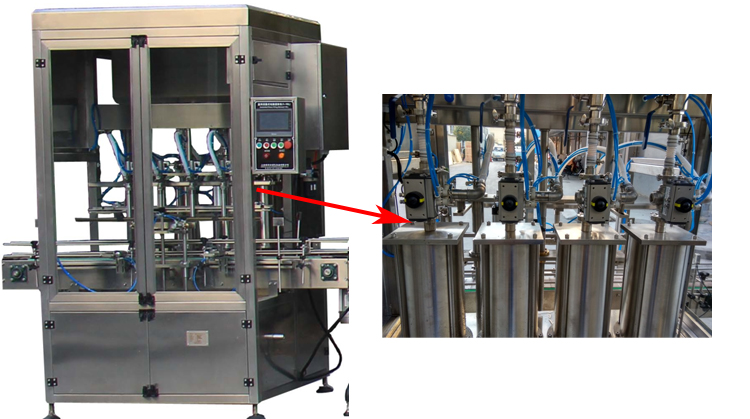

Filling machine:

5L Edible Oil Filling Capping And Labeling Machine

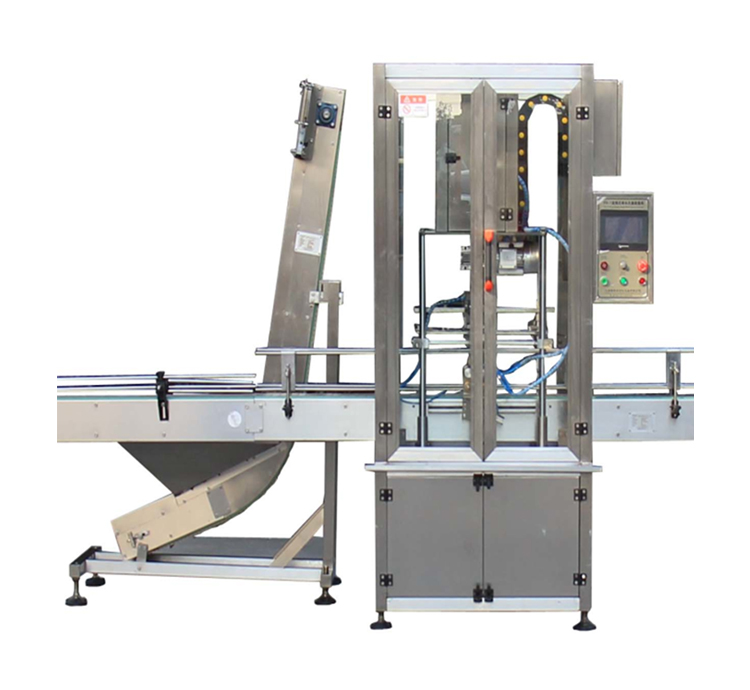

Capping machine:

5L Edible Oil Filling Capping And Labeling Machine

Labeling machine:

5L Edible Oil Filling Capping And Labeling Machine

Samples display:

5L Edible Oil Filling Capping And Labeling Machine
