5ml Test Tube Packaging Machine Automatic Rinsing Filling And Capping Machine

Name: 5ml Test Tube Packaging Machine Automatic Rinsing Filling And Capping Machine
Brand: METICA
Price: 10000 USD

5ml Test Tube Packaging Machine Automatic Rinsing Filling And Capping Machine Manufactures

Brand Name : METICA

Model Number : /

Certification : CE

Place of Origin : Shanghai

MOQ : 1 SET

Price : USD 10000-20000/SET

Payment Terms : L/C, T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : 25-30 days

Packaging Details : Fumigation-free wooden boxes that meet international standards

Name : 5ml Test Tube and Pen Sprayer Filling And Capping Machine

Capacity : 500-2000BPH(can be customized)

Qualified rate : over 99%

Machine size : 1500(L)x1350(W)x1800(H) mm³

Warranty : 1-year warranty

Type : Feeding, Filling and capping machine monoblock

Automatic grade : Automatic bottle and cap feeding, filling and capping

Weight : 320kg

Product name : 5ml Test Tube Small Bottle With Spray Cap custom packaging machine

Application : Chemical,Medical,Commodity,Beverage etc..

Contact Now

5ml Test Tube And Pen Sprayer Filling And Capping Machine Custom Packaging Machine

Application

The machine is spceial designed for test tube, pen sprayer and similar caotainers.
The machine is used for all kinds of liquid products filling and capping, mainly small bottle with volume 5-50 ml.
Essential Oil, E-Cigarette, Health Care Oil, Eye Drop and similar products is available.

Spec and Feature

The machine speed is 10-30 BPM, we can customized higher speed machine according to customers' requirements
The whole machine is designed especially for 5-50ml liquid filling, capping
Adopts peristaltic pump or piston pump, high filling precision. No bottle, no fill, no drop, no leak
Touch screen, easy operate and adjust human interface. English operation interface

Work flow:

Manually load pen on feeder
Pen feeding automatically by feeder
Automatic filling with 2 filling nozzles(customizable)
One cap loading station for loading cap automatically
One capping station for capping automatically
Push out bottle on conveyor after filling and capping

Parameter:

Speed	500-2000bph (can be customized)
Filling accuracy	more than 99%
Filling volume	5-50ml(can be customized)
Filling method	servo motor+ piston or peristaltic pump
Power supply	220V 50/60hz 2kw
Air supply	0.6 MPa
Bottles applicable	pen with spray cap
Caps applicable	press caps/ screw caps/spray pump cap
Application	Liquid or viscosity liquid
Feature	PLC, touch screen etc..

5ml Test Tube Packaging Machine Automatic Rinsing Filling And Capping Machine

Pen feeder:

5ml Test Tube Packaging Machine Automatic Rinsing Filling And Capping Machine

Cap feeder:

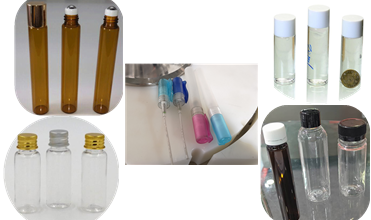

Samples display:

5ml Test Tube Packaging Machine Automatic Rinsing Filling And Capping Machine
