500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control

Name: 500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control
Brand: METICA
Price: 13000 USD

500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control Manufactures

Brand Name : METICA

Model Number : MTGF-1000

Certification : CE

Place of Origin : Shanghai

MOQ : 1 SET

Price : USD 13000-16000/SET

Payment Terms : L/C, T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : 25-30 days

Packaging Details : Fumigation-free wooden boxes that meet international standards

Name : 500ml Hand Sanitizer filler, liquid and paste filling machine

Application : Beverage,Food,Chemical,Medical

Capacity : 1000-1500 BPH(customizable)

Filling accuracy : more than 99%

Machine size : 2400*1350*1730 mm³

Warranty : One-year

Automatic grade : Automatic

Driven type : Electric and pneumatic

Voltage : 220V, 50/60Hz (customizable)

Packaging type : Bottles,Cans,Barrel, Glass Jars

Filling system : Servo motor driven piston, servo motor control diving

Contact Now

500ml Hand Sanitizer / Disinfectant / Detergent Liquid And Paste bottle Filling Machine

Application

_{^{This machine used for all kinds of liquid and high viscosity liquid product,such as Disinfectant and Medical Alcohol, hand sanitizer,}}Disinfectant / Detergent etc.. Good for 1000 ml liquid products filling.
_{^{If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.}}
_{^{The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.}}

Spec and Feature

Adopts piston + servo motor driven fillin system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
Diving filling method is available
High filling speed and filling precision, no bubble,stable
Filling volume is adjustable in certain filling volume scope
Single nozzle is micro adjustable
Compact models, operation stability, simple operation, easy cleaning
PLC,Touch screen human-computer interface with simple operation
Can work alone or join a production line

Work flow

Put bottle on conveyor by hand
Bottle move to the filling nozzles filling automatically
Bottle move out after filling

Parameter:

Speed	1500-2500bph (customizable)
Filling accuracy	>=99%
Filling volume	100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method	piston + servo motor driven
Power supply	220V 50hz 2kw
Bottles applicable	a wide shape range
Application	Liquid or viscosity products
Feature	PLC, touch screen, tank, level meter

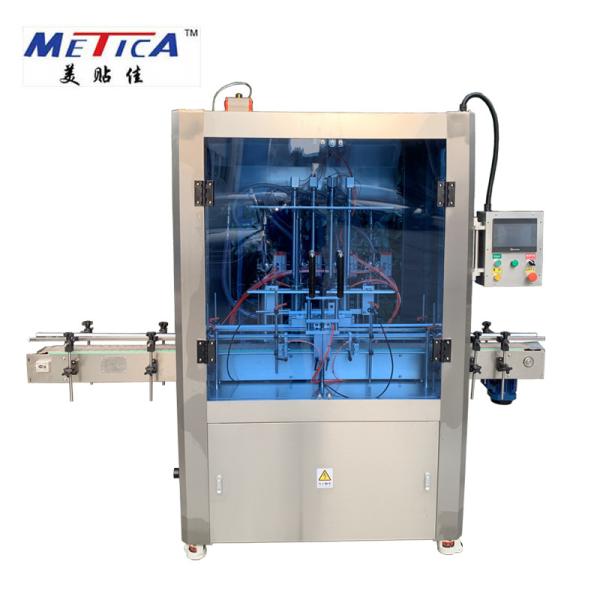

500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control

Samples display:

500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control
